WickRight Passive Ventilation™ Systems help keep masonry parapet walls dry.
Our KITS save you time by bundling all the WickRight materials you need.

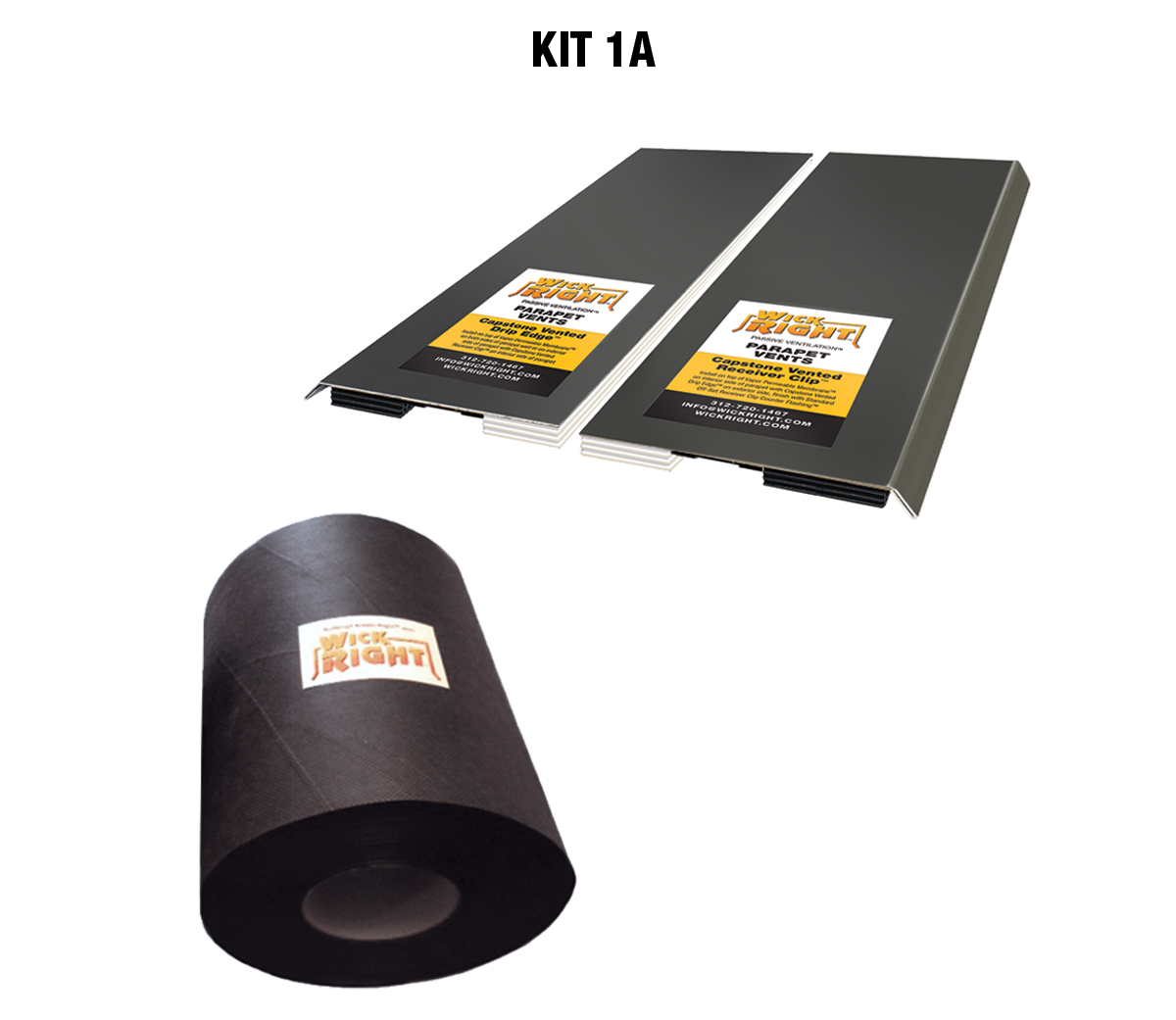

Kit #1A – WickRight Capstone Vented Drip Edge™ and Vapor Permeable Membrane™ Kit includes:

• WickRight Capstone Vented Drip Edge™ for both sides of parapet wall
  Sold in 10 foot length
  Price per foot $15.30 - Please call for quote as Stainless Steel and plastic prices fluctuate.
  Standard Drip Edge is Stainless steel
  Copper and Kynar painted galvanized steel available, call for details
  Patented. For use under Capstones. Use on most masonry walls; block, brick or combination. Stainless Steel drip edge with Polypropelene vent panel.
• WickRight Vapor Permeable Membrane™ – based on width of parapet wall – protects parapet from wind driven rain, allows moisture vapor to exit, does not allow water to enter
  Rolls are 200' long, short rolls may be available

  Choose the proper width:
  9" rolls – single wythe block walls.
  15" rolls – brick/block wall combinations and multiple-wythe brick buildings.
  20" rolls – buildings that have custom widths, twists, turns and odd angles to accommodate.
  If your project requires wider membrane, please call 312-720-1467. 10 days advance notice required.
  Rolls are 200' long Required for installation with: WickRight Capstone Vented Drip Edge, Capstone Vent with Receiver Clip and Clay Coping Vent
  Optional for installation with: Metal Coping Vent under metal copings
  How to Order: Perimeter measurement plus 10%.
  Download Membrane Tech Data Sheet
  Download Membrane Safety Data Sheet
• Capstone Vented Drip Edge is a permanent ventilation system. Installation protects the top of parapets from rain seeping through capstones. Wind flows through Capstone Vented Drip Edge to dries walls via circulation and draws moisture vapor up and out of masonry and wall core.Option 1: Capstone Vented Drip Edge can be installed on both sides of a parapet wall.
  Option 2: Capstone Vented Drip Edge installed on exterior side of the wall, Parapet Vent with Receiver Clip on interior side of the wall. REQUIREMENTS: 1. WickRight Vapor Permeable Membrane must be installed under Casptone Vented Drip Edge. Membrane allows moisture vapor to exit, but does not allow water to enter.2. If wall is more than 9" wide, order appropriate width of Capstone Support to span the distance between WickRight devices on interior and exterior sides of wall to support the self-adhered flashing which will be installed between WickRight systems and under the capstone.If self-adhered flashing is not supported, it may sag over time; rain seepage thru the capstone may collect in the depression; this water may freeze in the winter and damage the self-adhered flashing and capstone

  WickRight Parapet Vent products protect against moisture intrusion, yet allow airflow across and into parapet by 7.2 cpm per lineal foot with an 18 mph wind, produces a lift force of 7.87 lbf to draw moisture vapor up and out of masonry walls.

WickRight Parapet Vent is field proven in over 150 buildings in Chicago, Milwaukee, Tampa, Central Ohio, Southern Michigan and Northern California.

Installation training available, call 312-720-1467 for details

How to Order:
Measure length of parapet wall to be vented, add 10% for corners, etc

Example – wall is 125' x 110% = 137.5'
Order 140' – because Drip Edge comes in 10 foot lengths
Kit 1A will come with 2 equal lengths of Drip Edge

Lead time/Shipping:

Kit #1A is typically in stock, however, should fabrication be needed, it takes 7-10 business days. Shipping is typically via FedEx LTL Freight, 5-10 business days.
